WATER MANAGEMENT EXPERTS

truck disinfection gates | vehicle disinfection gates

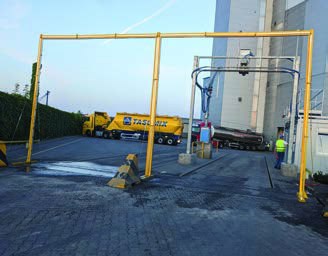

360 Vehicle Disinfection Gates

The Sanigene HydroSan 360 Vehicle disinfection
gate is the best way to disinfect 100% of vehicles
entering to and from site. A cost effective way in
protecting your business and significantly reducing
the risk of disease entering your site.

Designed to be used on farms, feed mills, zoos, veterinary practices, processing plants and any other area where disease spread is a risk.
360 degree disinfection spray ensures the complete vehicle is disinfected.

Also available as a double gate.

INSTALLATION REQUIREMENTS

  • 4m x 5m concrete pad
  • 1m x 1.5m concrete pad for storage box
  • 16 amp - 230v - single phase power supply
  • Cold water - 2-5 Bar

Disinfect Everywhere Every Time

FEATURES

  • Width between right spray post and left spray post is 4.0m and 4.50m
  • High-quality 230V powered pump
  • Startup options: automatic sensors start/stop, remote control on/off and manual on/off
  • Durable components ensure years of outstanding performance with minimal maintenance
  • Made of powder-coated aluminium which makes it lightweight and easy to install
  • Spray lance with a 20m hose for spraying for spraying hard to reach areas
  • Low-temperature operations system that allows the truck disinfection gates to be used below 0°C
  • Reflective elements ensure adequate visibility after dark
  • Build-in dosing system, multiple dilution levels
  • Divided into sections – disinfection of the chassis or the entire truck
  • Standard dimension: 4m wide and 5.2m high
  • Bespoke sizes are available on request
Have any questions?
Contact us now
INSTALLATION REQUIREMENTS
  • 4m x 5m concrete pad
  • 1m x 1.5m concrete pad for storage box
  • 16 amp - 230v - single phase power supply
  • Cold water - 2-5 Bar
Have any questions?
Contact us now

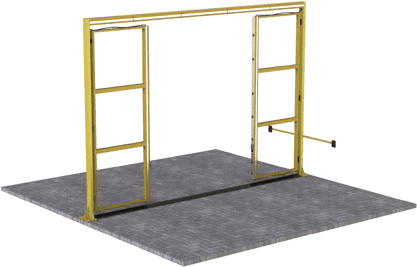

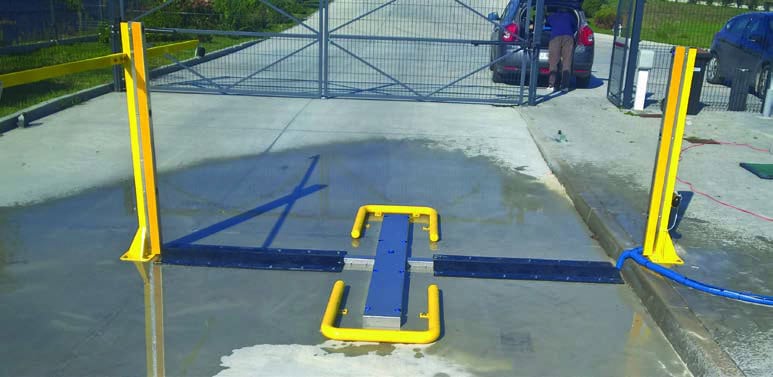

180 Truck Disinfection Gates

The 180° vehicle disinfection gate ensures that the wheels and chassis are fully disinfected. It is a cost-effective way of protecting your business and significantly reducing the risk of disease entering your site. Designed to be used on farms, feed mills, zoos, veterinary practices, processing plants and any other area where disease spread is a risk. 180° truck disinfection gates ensure that wheels and chassis is fully disinfected.

FEATURES

  • Durable components ensure years of outstanding
  • Made of powder-coated aluminium which makes it lightweight and easy to install
  • Spray lance with a 20m hose for spraying for spraying hard to reach areas
  • Width of gate 4m as standard (can be made any size)
  • Height is 150cm high
  • High-quality 230V pump
  • Reflective elements ensure adequate visibility after dark
  • Start up options: automatic sensors start/stop, remote control on/off and manual on/off - The automatic sensors use technology to only pick up metal objects.
  • Low-temperature operations system that allows truck disinfection gates to be used below 0°C
  • Build-in dosing system, multiple dilution levels
  • Disinfection time of the truck 15-25 seconds
  • Water Consumption from 15L / min to 50L/min
  • Standard dimensions: 4m x 1.5m high
INSTALLATION REQUIREMENTS
  • 4m x 5m concrete pad
  • 1m x 1.5m concrete pad for storage box
  • 16 amp - 230v - single phase power supply
  • Cold water - 2-5 Bar

INSTALLATION REQUIREMENTS

  • 4m x 5m concrete pad
  • 1m x 1.5m concrete pad for storage box
  • 16 amp - 230v - single phase power supply
  • Cold water - 2-5 Bar
Have any questions?
Contact us now
Have any questions?
Contact us now

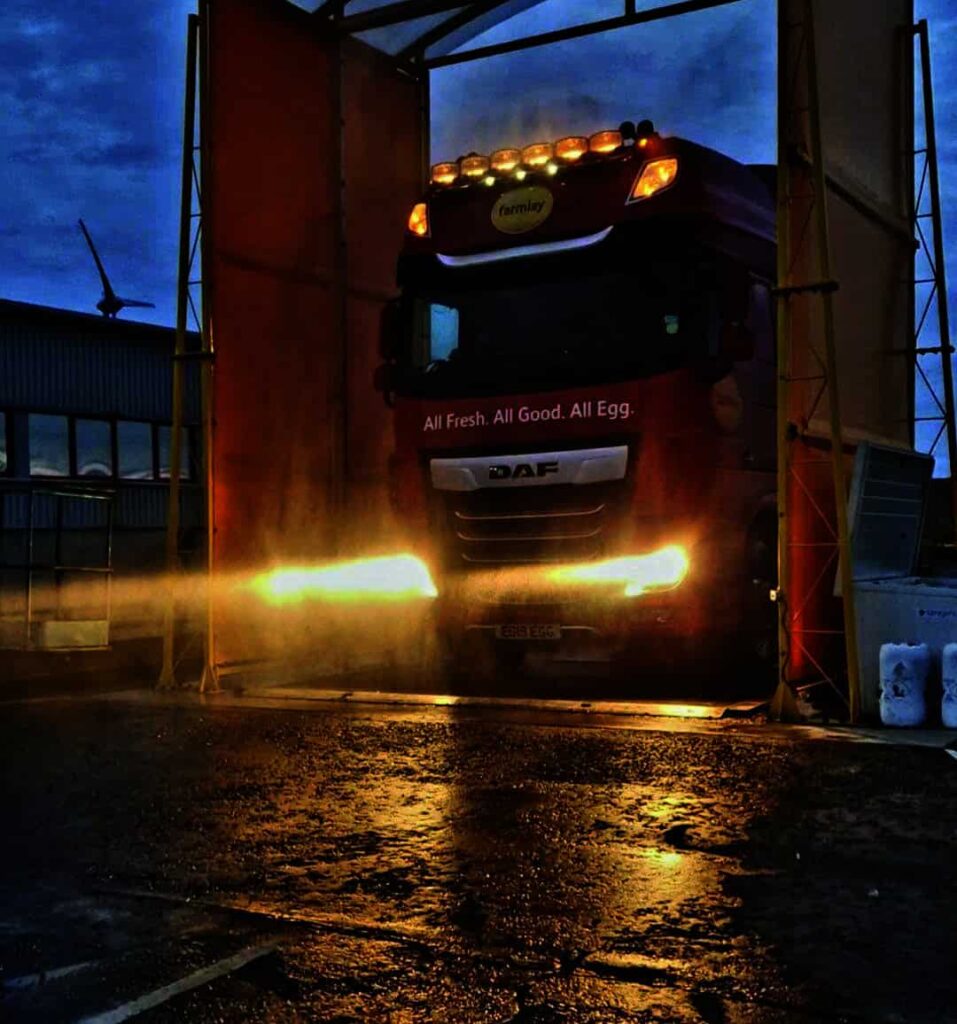

360 D with Draft Shield

The disinfection draft shield gate provides protection, improving the quality of disinfection. During high wind, the draft shield ensures an even distribution of disinfectant on the surface, reducing the chance of disinfectant spraying outside the disinfection area.

TECHNICAL DATA

  • Made of powder-coated steel and high- quality tarpaulin, which is resistant to all weather conditions
  • Standard dimension: 4m wide x 5.2m high x 3m long

Have any questions?

Contact us now

360 W with Extended Width

The device can be extended up to 10m in width. The biosecurity gate is adapted to the individual needs of the customer. The width between the extension right and the extension left is typically between 4.0m and 4.5m. The spray system has overarching sprayers tall enough for any kind of commercial truck to fit through with multiple sprayers on each line.
  • Standard dimensions: 5.2m x 4m internal width

Have any questions?

Contact us now

360 T Automatic

The HydroSanTM 360 T is an automatic vehicle disinfection system that sprays the entire vehicle with particular emphasis on the chassis and wheels.

A compact device designed to deliver high-quality disinfection for vehicles entering the property.
Thanks to the arrangement of spraying nozzles placed on the ground and on the frame, HydroSan 360 T guarantees the highest quality of disinfection.

ADVANTAGES

  • Wheels and chassis disinfection time extended
  • Automated disinfection process
  • Chemical agent dosing system
  • Works in low temperatures
  • Warning system ending chemical agent
  • Standard dimensions:
  • 4m wide x 5.2m high x 3m long
INSTALLATION REQUIREMENTS
  • 4m x 5m concrete pad
  • 1m x 1.5m concrete pad for storage box
  • 32 amp - 230v - single phase power supply
  • Cold water - 2-5 Bar

Have any questions?

Contact us now

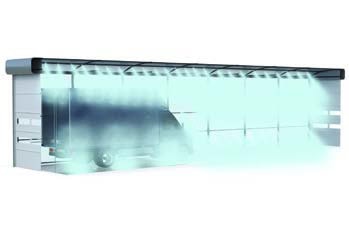

360 T Plus Automatic

The HydroSan 360 T Plus is an automatic vehicle
disinfection system which sprays the entire
vehicle with particular emphasis on the chassis
and wheels. The next stage of vehicle disinfection
is automatic fogging with a chemical agent that
takes place for a specified time.

Whole vehicle fogging/misting enables difficult- to-reach places to be thoroughly disinfected. A disinfection tunnel with appropriate dimensions will cover the entire car with a disinfectant. The disinfection tunnel is a barrier, a border between the clean zone and the dirty zone.
Thanks to the patented two-stage disinfection, we guarantee that the cars entering the farm and production plant are 100% disinfected.

ADVANTAGES

  • Building dimensions ensures full truck coverage
  • Two-stage vehicle disinfection
  • Automated disinfection process
  • Chemical agent dosing system
  • Works in low temperatures
  • Roller, automatic entry and exit doors
  • The tunnel is made of the highest quality materials and is resistant to chemicals and external factors
