LV/MV WASH SYSTEMS | Industrial Truck Wash Systems

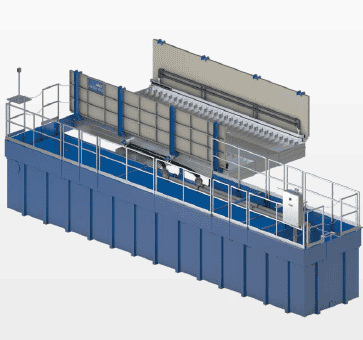

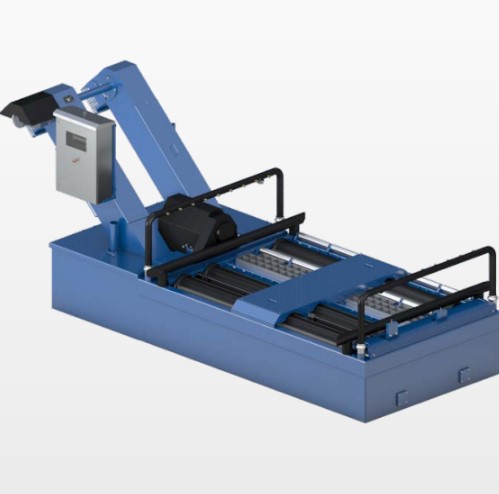

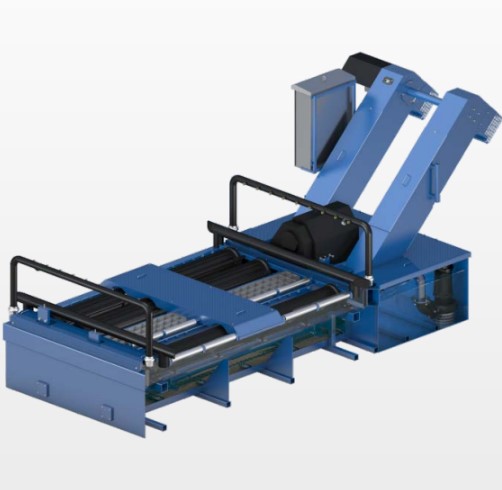

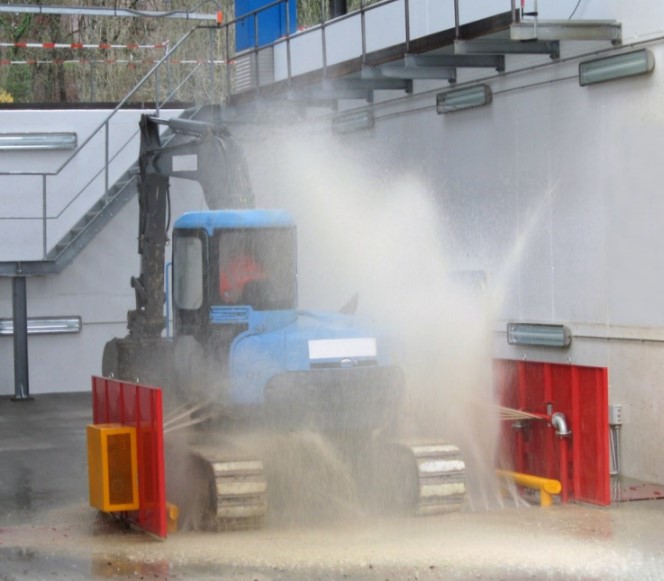

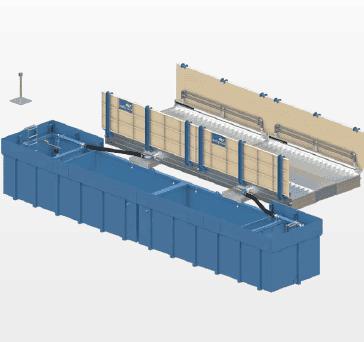

The vehicle wheel washing systems of the ConLine KIT line were developed by our engineers specifically for the needs of the construction industry. The basic unit of the modular concept consists of a robust four meter long wash unit and a recycling tank. It can be combined with a scraper conveyor, a mobility package or a second basic unit to form eight different industrial truck wash systems that are four or eight meters in length. All wash bay models can be installed quickly and impress thousands of operators around the world.

MobyDick ConLine KIT Flex 400B

The KIT Flex 400B model can wash up to 150 moderately soiled trucks per day.

Features

Drive-through length: 400 cm
Drive-through width: 280 cm
Maximum axle load 15.0 t
Splash guard wall height: 136 cm
Nozzles 130 pcs.
Nozzle Ø: 7 mm.

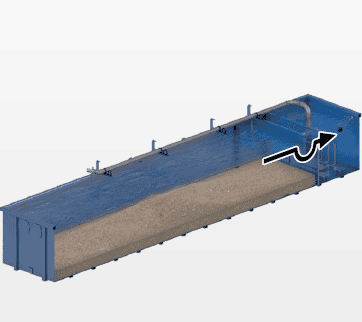

Recycling tank volume: 20 m³
Maximum pumping capacity: 2 x 2.5 m³/min
Electrical connection values: 11.2kW
Sound emission < 75 dB
Weight (ready to ship) 6000 kg

Have any questions?

MobyDick ConLine KIT Plus 600B-50P

The KIT Plus 600B-50P model can wash up to 250 moderately soiled trucks per day.

Features

Drive-through length: 600 cm
Drive-through width: 280 cm
Maximum axle load 15.0 t
Splash guard wall height: 136 cm
Nozzles: 226 pcs.
Nozzle Ø: 7 mm.

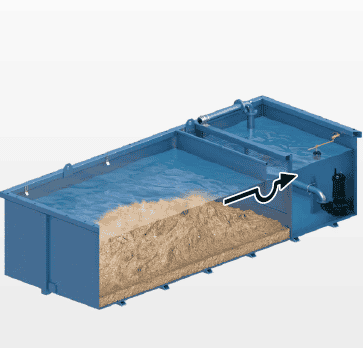

Recycling tank volume: 50 m³
Maximum pumping capacity: 3 x 2.5 m³/min
Electrical connection values: 17.5 kW/40 A
Sound emission < 75 dB
Weight (ready to ship) 9,500 kg

Have any questions?

MobyDick ConLine KIT Flex 800B

The KIT Flex 800B model can wash up to 200 moderately soiled trucks per day.

Features

Drive-through length: 800 cm
Drive-through width: 280 cm
Maximum axle load 15.0 t
Splash guard wall height: 136 cm
Nozzles: 2 x 130 pcs.
Nozzle Ø: 7 mm.
Recycling tank volume: 2 x 20 m³
Maximum pumping capacity: 4 x 2.5 m³/min
Electrical connection values: 22.4 kW
Sound emission < 75 dB
Weight (ready to ship) 11,500 kg
