Automatic Gantry Rollover Systems | SmartWash Systems
SmartWash Supra
The SmartWash Supra combines the adaptability of touchless, high-pressure washing for irregular size vehicles with an economical TWO or THREE brush rollover system.
Tractors are effectively cleaned by chemical/high pressure wash systems. Trailers are best
cleaned by brushes.
The Supra gives the advantages of both wash methods — clean vehicles for the best price.
Features
- Stainless Steel frame construction
- Large diameter HDPE brushes
- VSD for side brushes
- Top brush lift assembly
- High pressure pump assembly
- Wash water pump
- Chemical metering pumps
- Multiple wash programs
- Touch screen for gantry control
SmartWash SuperScout
The SmartWash SuperScout provides comprehensive cleaning of all standard size vehicles including buses, vans and trucks. This TWO or THREE brush rollover gantry is available in both 12ft or 14ft maximum vehicle height.
Features
- Stainless Steel frame construction
- Large diameter HDPE brushes
- VSD for side brushes
- Top brush lift assembly
- High pressure pump assembly
- Wash water pump
- Chemical metering pumps
- Multiple wash programs
- Touch screen for gantry control
- Specific ‘Coach Wash’ programs available
SmartWash Storm
The SmartWash Storm is ideal for washing irregular or standard vehicles such as buses, straight trucks, tractor trailers and smaller vehicles – especially when a mixed fleet of vehicles need to be cleaned.
Features
- Stainless Steel frame construction
- Touchless spray bars instead of brushes
- Spinning nozzles available
- Automatic or manual start options
- Multiple wash programs available
SmartWash Sprite
The SmartWash Sprite is a drive-through fast wash system designed to maintain large fleets. The Sprite cleans in less than 2 minutes in a short bay. It is ideal for short bays and large fleets needing to wash 10 or more trucks per hour.
Features
- Stainless Steel frame construction
- Multiple arch/brush configurations available
- Brush or touchless systems available
SmartWash Sprite Configurations

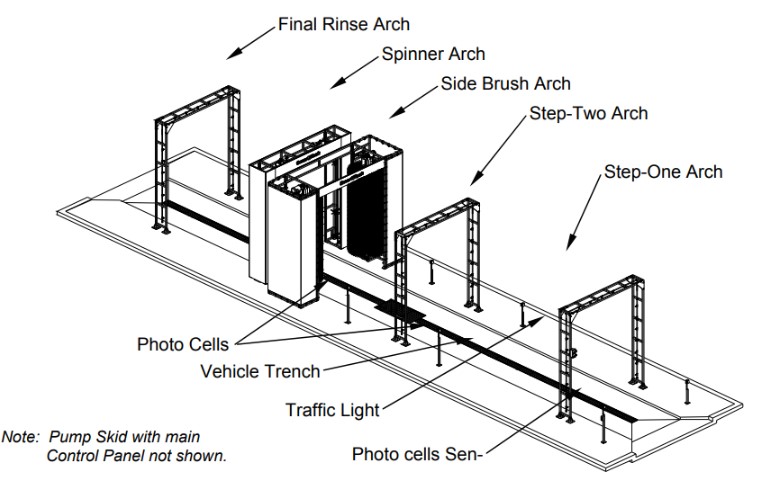

Two Step Configuration - Standard
The Two Step Drive-Thru system consists of the following major components: Traffic light, photocells, vehicle guide rails, pump skid with main control panel, step 1 arch, step 2 arch, side brush arch, spinner arch and the final rinse arch.
Two Step Configuration - Touchless
The Two Step Drive-Thru system consists of the following major components: Traffic light, photocells, vehicle guide rails, pump skid with main control panel, step 1 arch, step 2 arch, spinner arch and the final rinse arch.

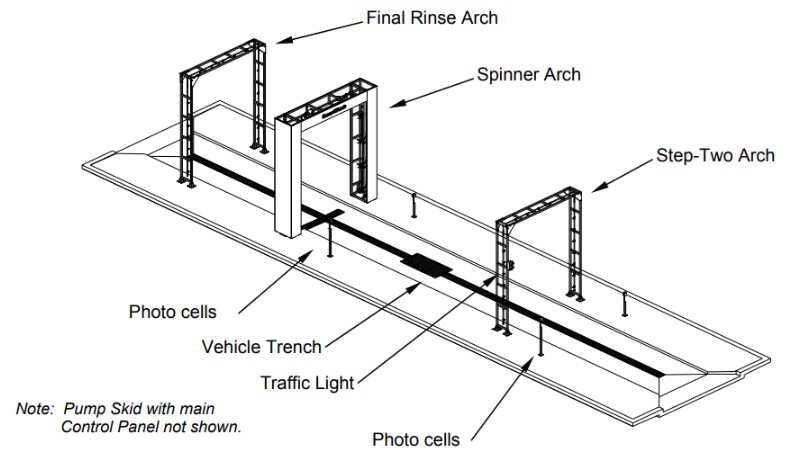

One Step Configuration
The One Step Touchless Drive-Thru system consists of the following major components: Traffic light, photocells, vehicle guide rails, pump skid with main control panel, step 2 arch, spinner arch and final rinse arch.
